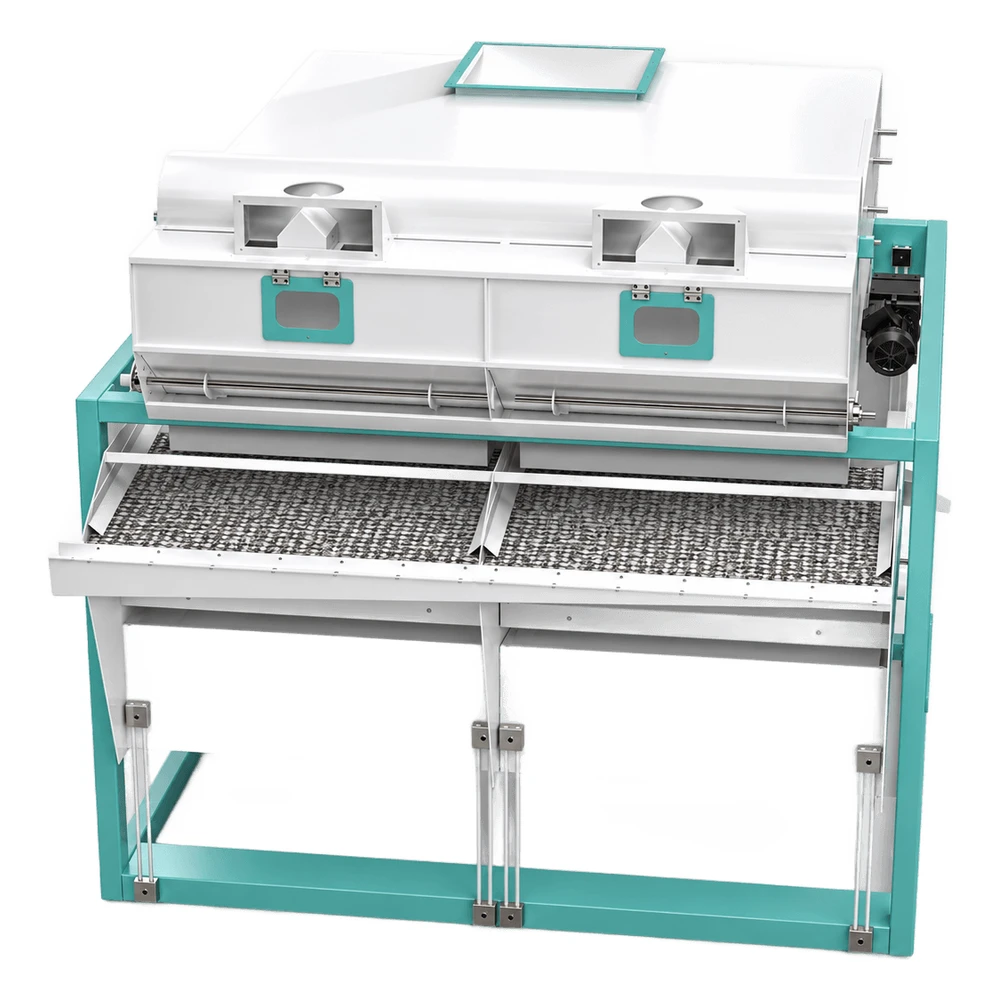

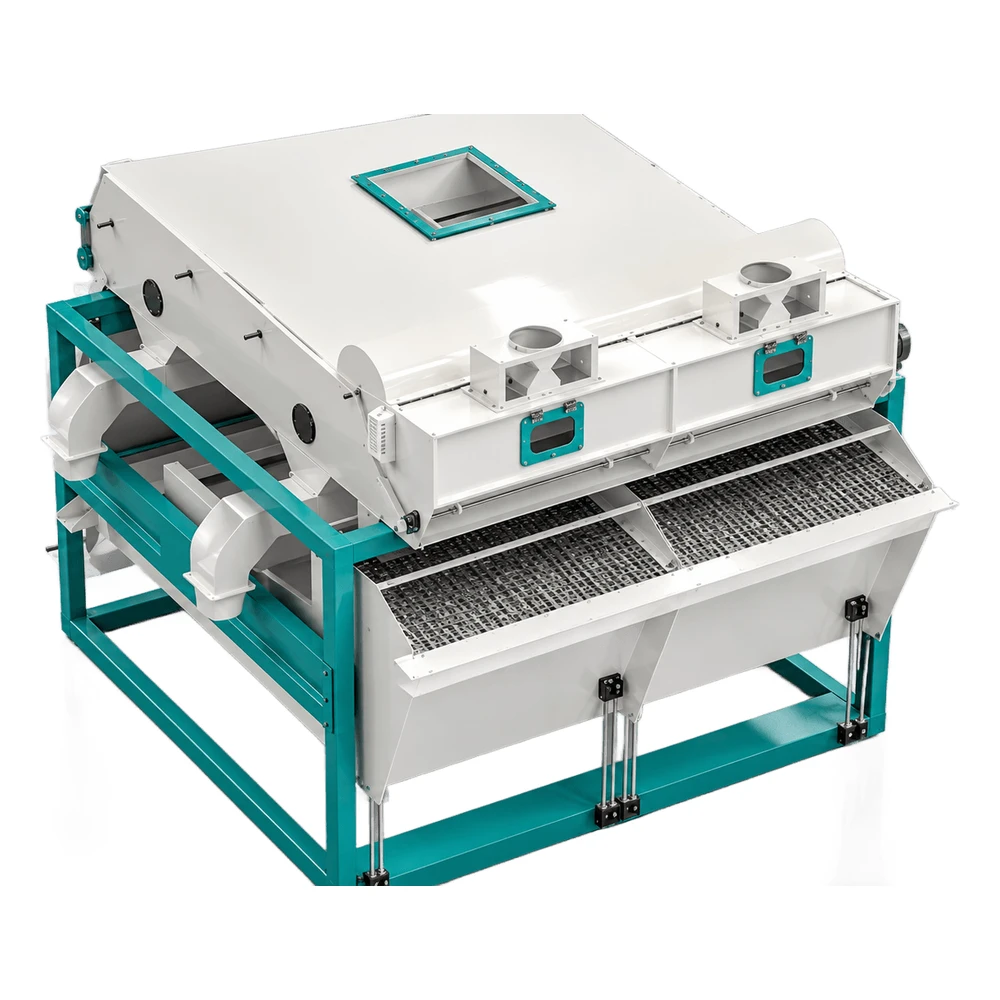

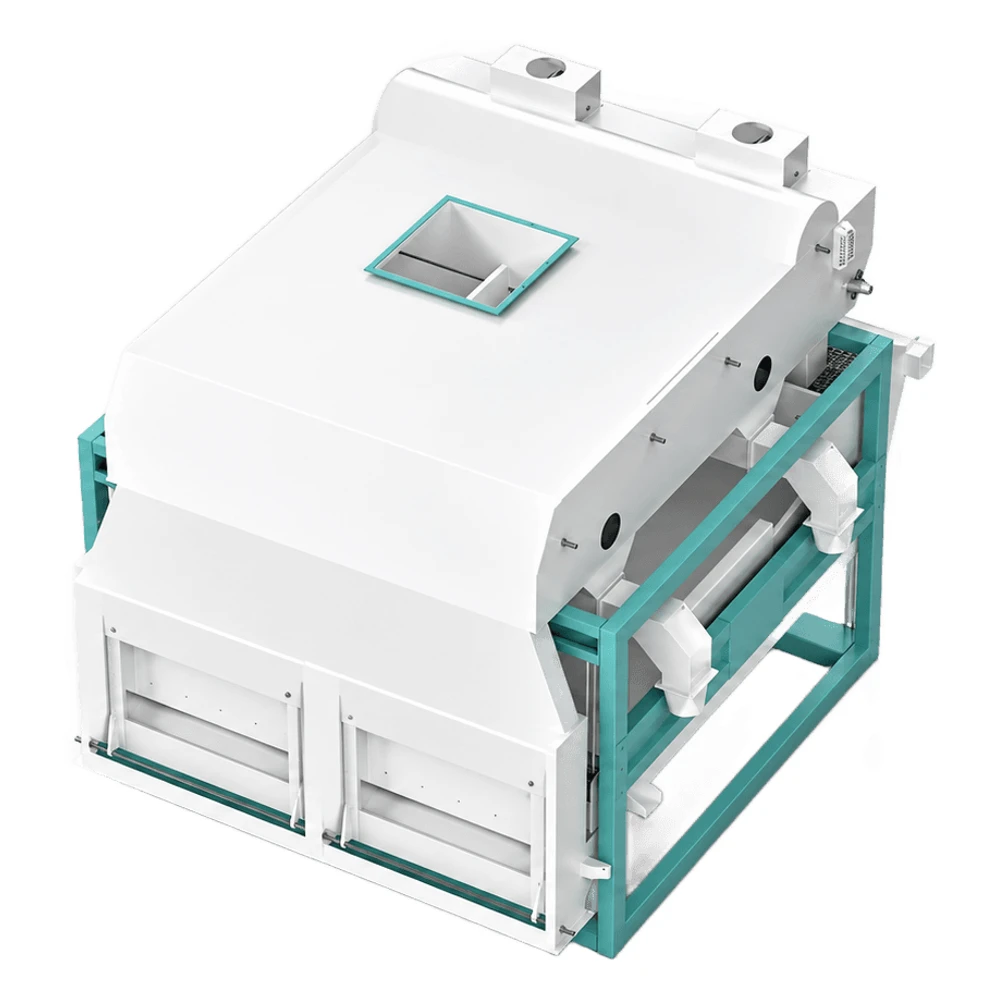

SEPERATOR

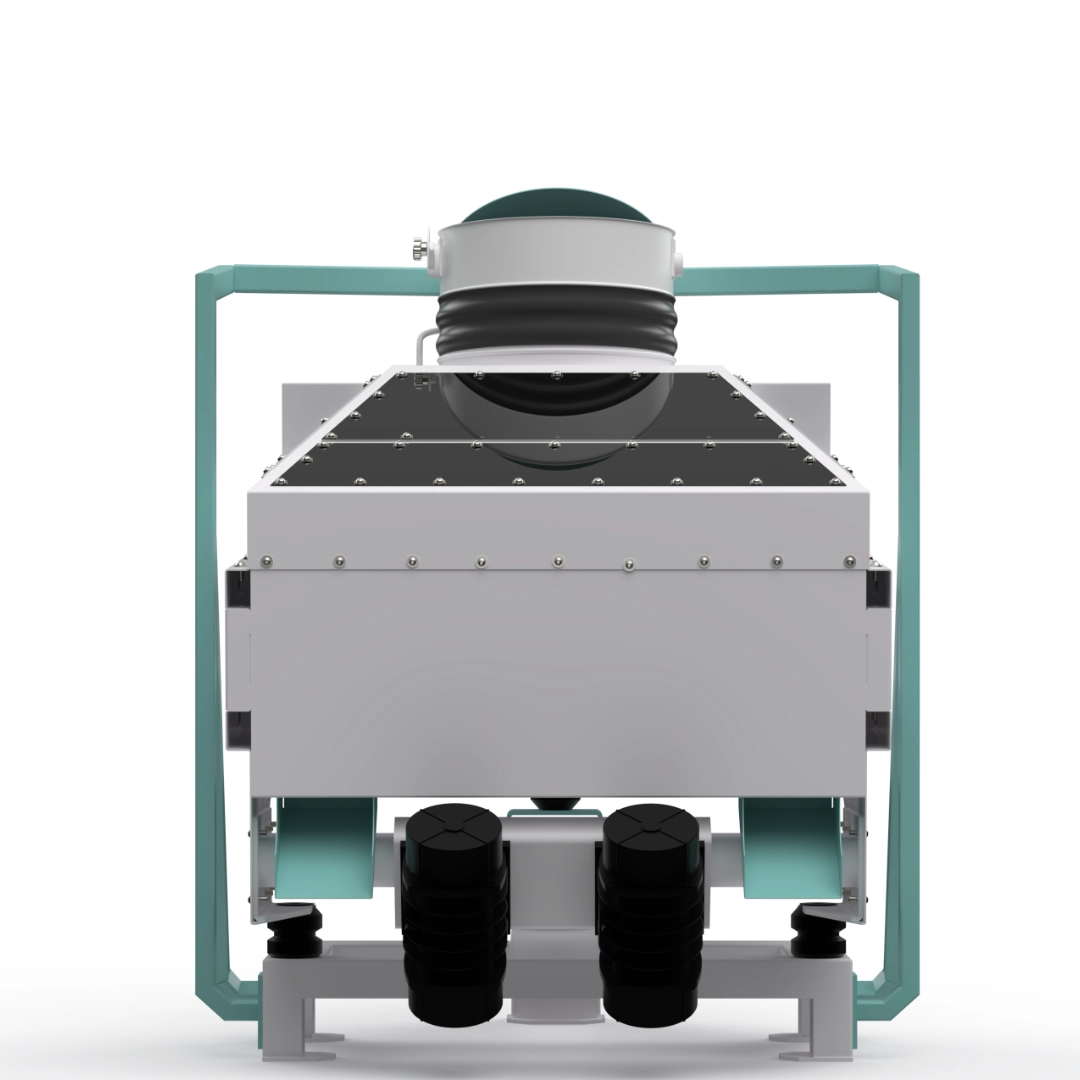

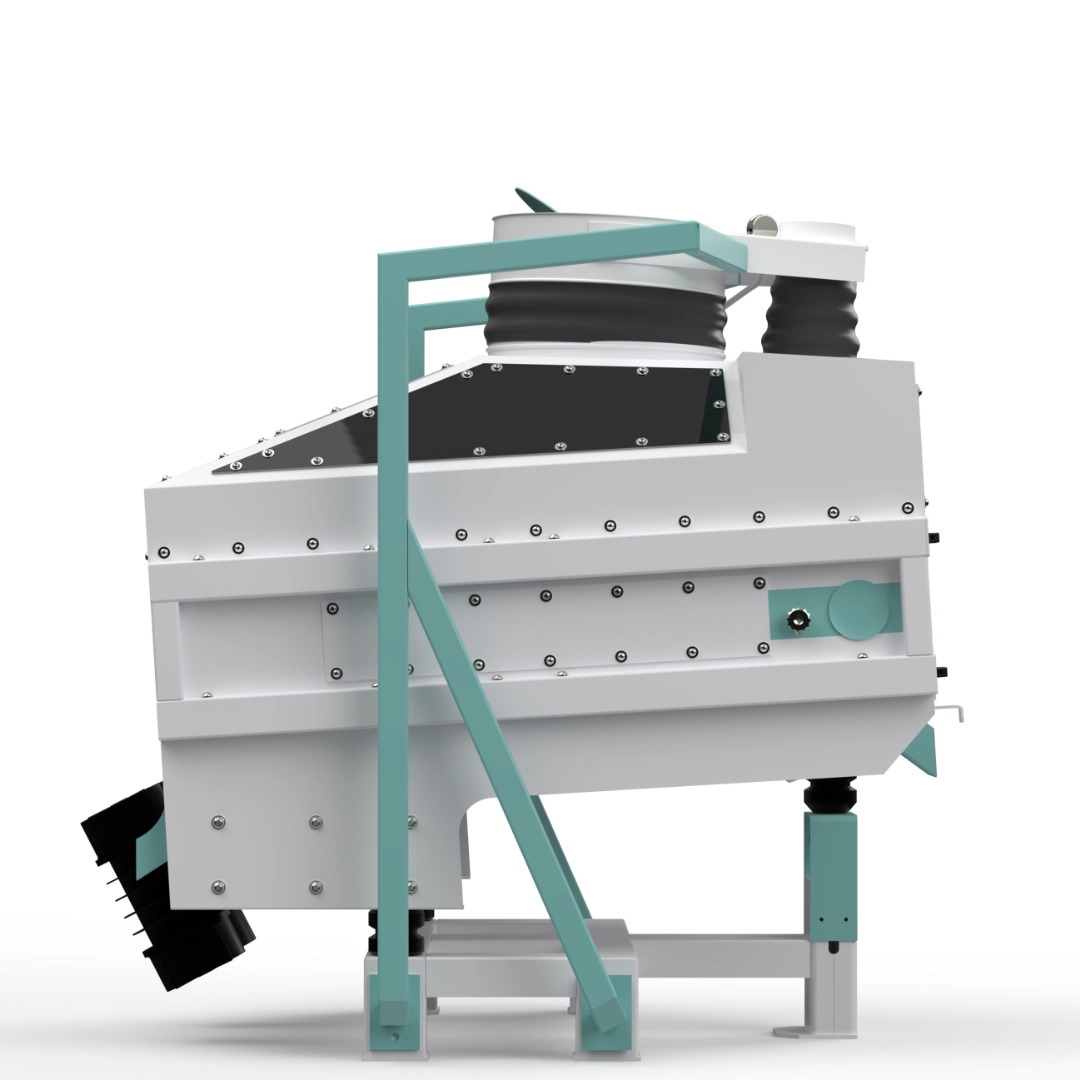

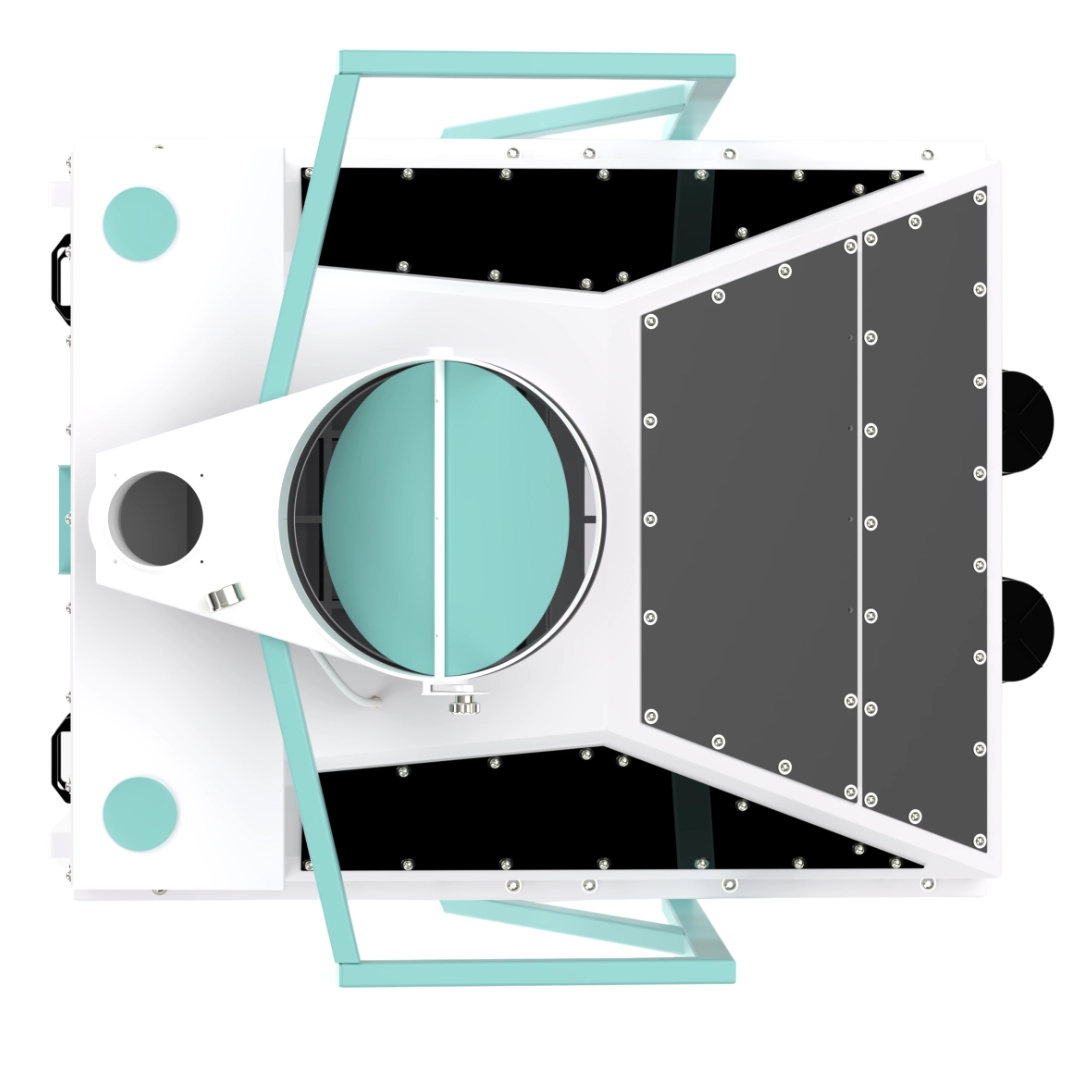

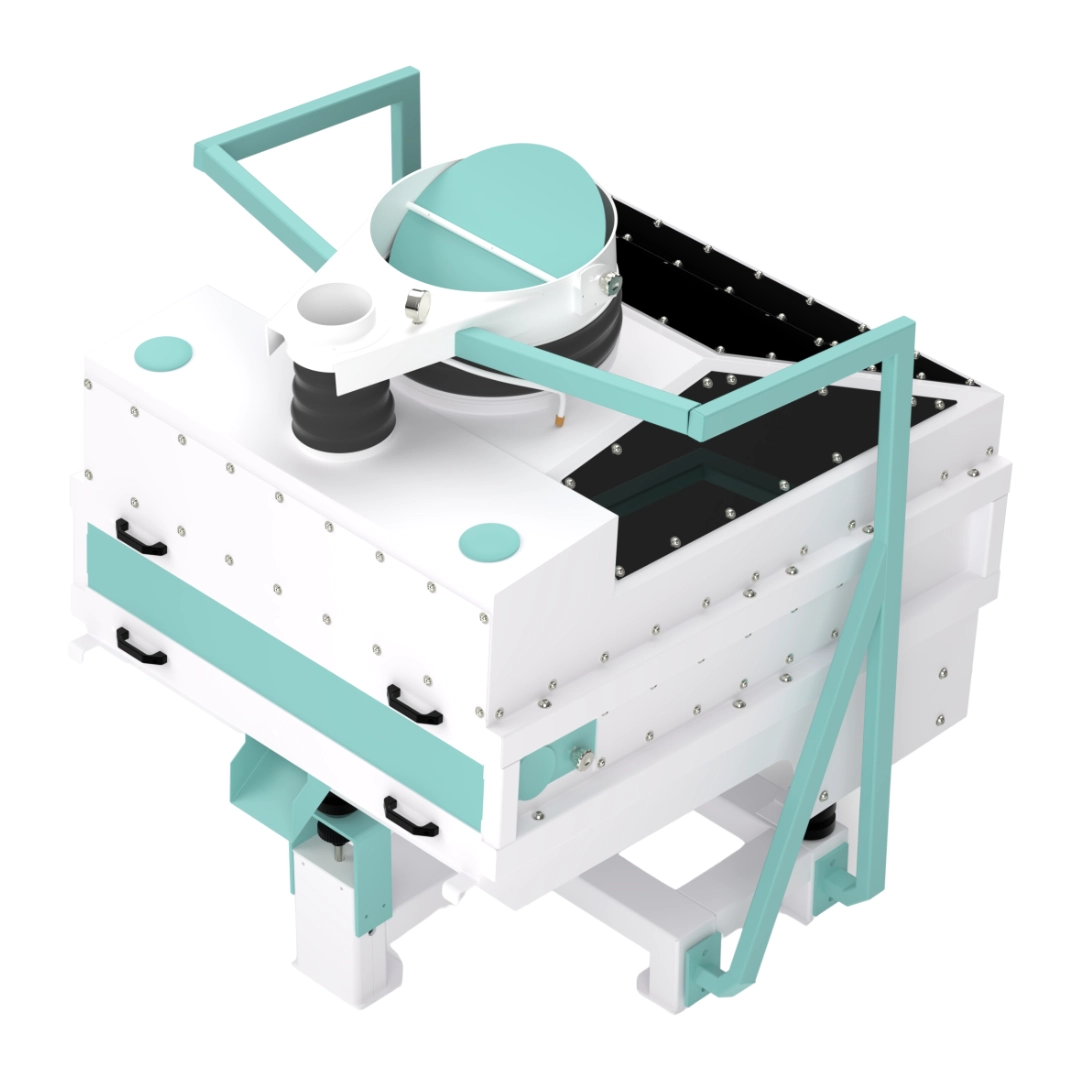

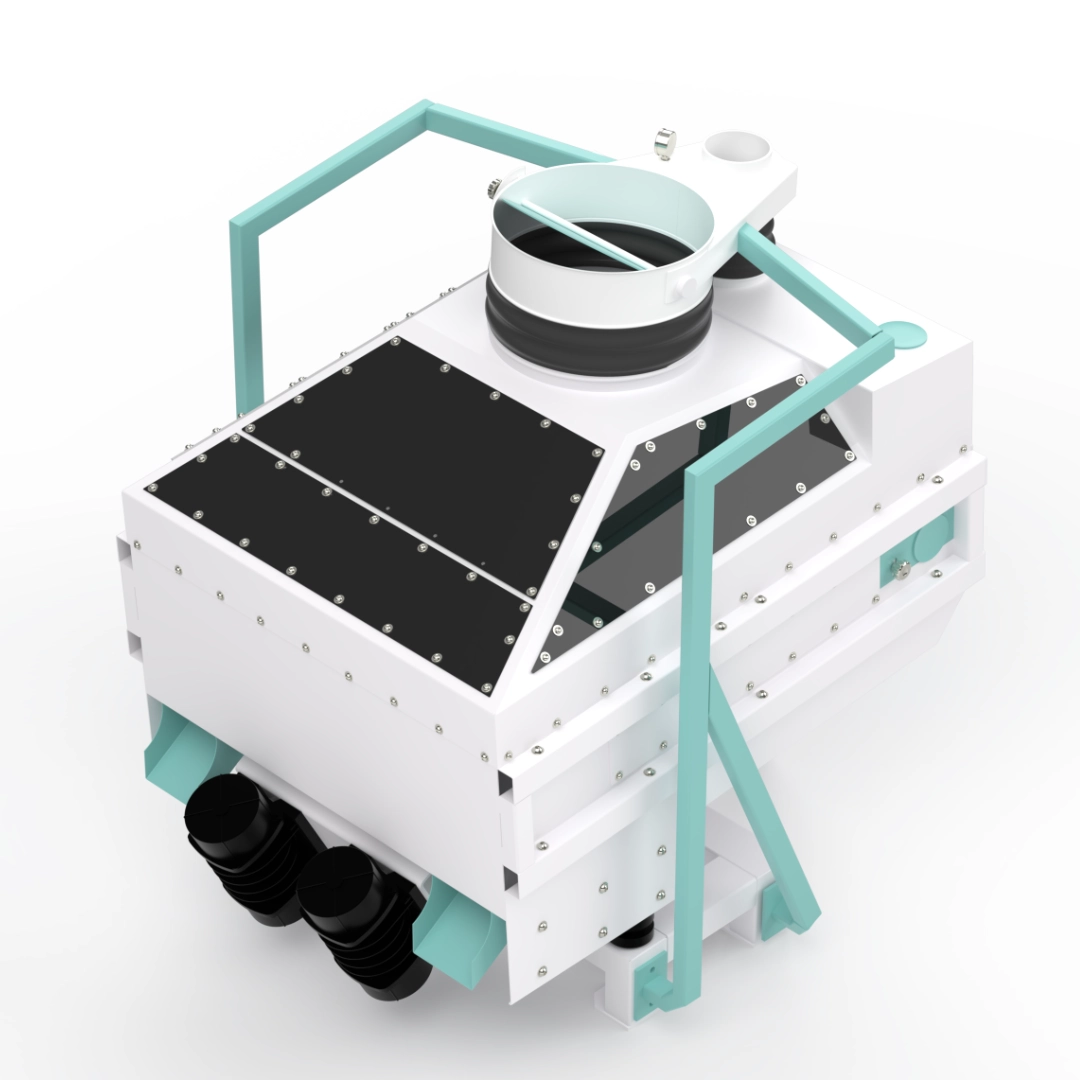

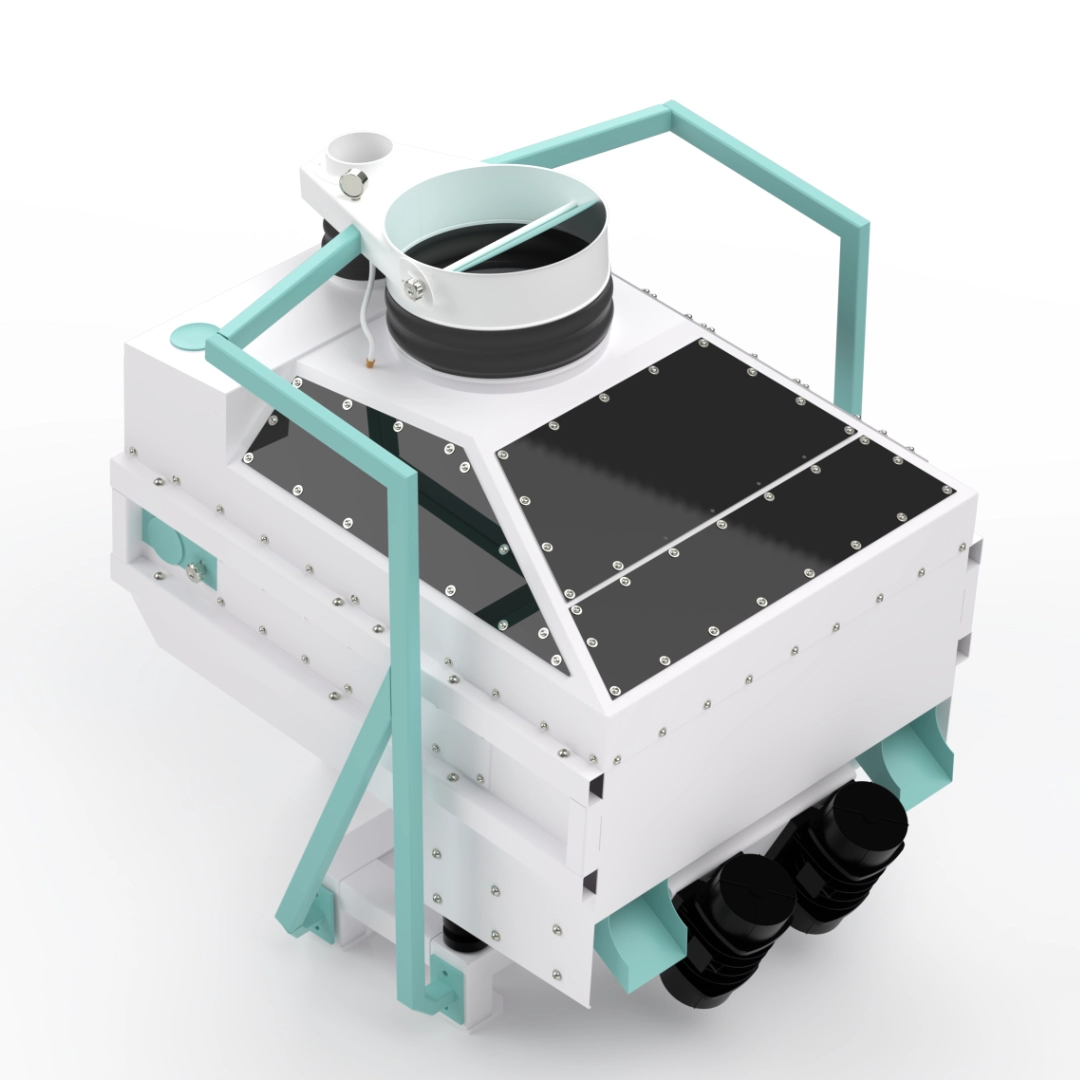

It is used for separation of foreign substances like hay, spike, soil which have different dimensions compared to that of grains. The machine, totally steel constructed, is equipped with two sieves with which vibration and inclination can be adjusted. Integrated inspection window. Rubber balls are used to prevent congestion of sieves. Inclination and vibration intense of the sieves can be adjusted by counter weights. As vibration motor is directly installed to the machine, items causing problems such as belt, pulley, bearing and hanging rods are not used.
TEKNİK ÖZELLİKLER
| MODEL | KAPASİTE (T/s) | HAVA İHTİYACI (m³/d) | |
|---|---|---|---|
| Silo | Temizleme | ||
| TMSÇS 60X100 | 20 | 5 | 4 |
| TMSÇS 100X100 | 33 | 8 | 6 |
| TMSÇS 100X150 | 50 | 12 | 8 |
| TMSÇS 100X200 | 66 | 16 | 10 |
| TMSÇS 150X200 | 100 | 21 | 12 |
| MODEL | HAVA İHTİYACI (m³/d) | ELEKTRİK MOTORU | ELEK ÖLÇÜSÜ | KAPASİTE (Ton) | AĞIRLIK (Kg) | |||
|---|---|---|---|---|---|---|---|---|
| kw | d/dk | Ön Tmz. | Temizleme | Net | Brüt | |||
| TMSÇS 100X180 | 40 | 1.1 | 1500 | 2x90x90 | 14 | 8 | 1150 | 1250 |
| TMSÇS 120X180 | 40 | 1.1 | 1500 | 2x120x90 | 18 | 14 | 1300 | 1400 |
| TMSÇS 160X180 | 45 | 1.5 | 1500 | 4x80x90 | 25 | 18 | 1450 | 1550 |
| TMSÇS 180X180 | 45 | 1.5 | 1500 | 4x90x90 | 30 | 25 | 1530 | 1630 |
| TMSÇS 200X200 | 45 | 1.5 | 1500 | 4x100x90 | 40 | 30 | 1600 | 1700 |
