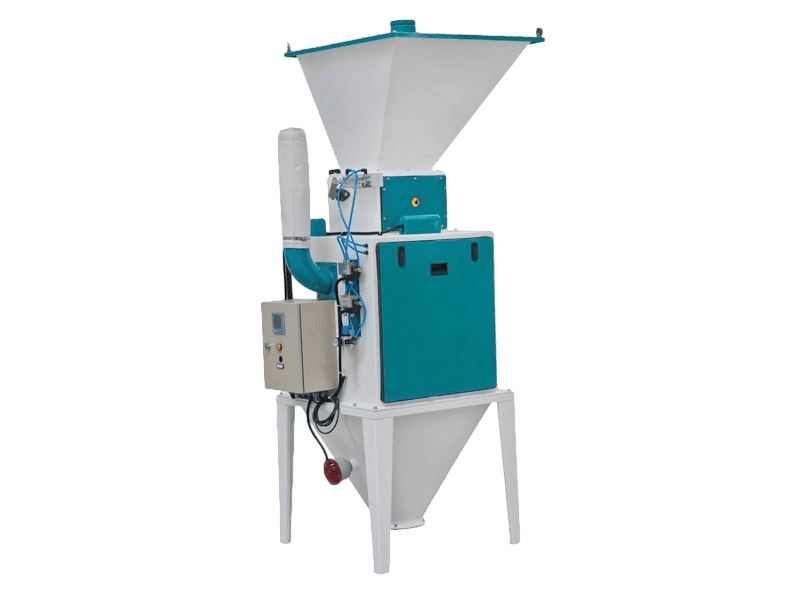

OUTPUT WEIGHER
- The scales have single cylinder single/double cover pans, Festo brand valves and aluminum dry system pneumatic cylinders (ISO 6431-32), stainless steel load cells.
- All interior surfaces are electrostatic powder oven painted after sandblasting, including food grade.
- Ability to work independently of the center at each weighbridge and total passing material information.
- Computerized center, printer, application program for reporting.
- Possibility of adjusting capacity on wheat scale. (max. t/h)
TECHNICAL SPECIFICATIONS
| MODEL | A. | B. | C. | D. | TO | F | WxW1 | H | i | Capacity (Flour) | Capacity (Wheat) | Capacity (Bran) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TMRK-350 | 1878 | 626 | 630 | 595 | 655 | 202 | 200-200 | 483 | 483 | 6 t/h | 8 t/h | 3 t/h |
| TMRK-420 | 2245 | 714 | 714 | 705 | 750 | 300 | 300-200 | 560 | 560 | 10 t/h | 12 t/h | 5 t/h |
| TMRK-550 | 2700 | 866 | 866 | 865 | 930 | 398 | 300-200 | 630 | 630 | 17 t/h | 25 t/h | 8 t/h |
